Magnescale

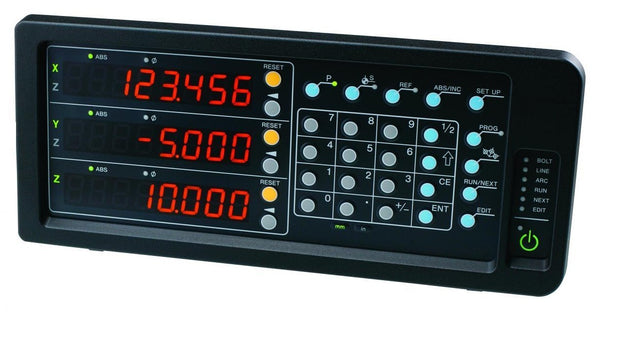

LH70 Digital Readout

Regular price $630.00 USD Sale price $567.00 USD

High-performance counter for Mille and Lathe applications.


Features

  • Counter for Milling machine and Lathe
  • Display Resolution Switching
  • Machine error compensation
  • Data Storage
  • Reset/Preset
  • Detecting Reference Point of Measurement Unit
  • Program function
  • Multi datum point
  • Milling function (Bolt hole circle / Easy R cutting / Line hole)
  • Lathe function (Tool coordinating / Adding function)

Specifications

Models:

  • LH70-1 (1 Axis)
  • LH70-2 (2 Axis)
  • LH70-3 (3 Axis)

Display: 7 digits and minus display

Connectable measuring unit: GB-ER, PL20C, SJ700A (Direct) / DG-B (Necessary to use the conversion adaptor which is sold separately)

Measuring unit input resolution (Standard): 0.1 μm, 0.5 μm, 1 μm, 5 μm, 10 μm, 1s, 10s, 1 min, 10 min

Measuring unit input resolution (Expanded): 100 μm, 50 μm, 25 μm, 20 μm, 2 μm, 0.05 μm, 1 degree can be added

Display resolution: Measuring unit input resolution or higher and diameter display (except for angle display)

Input signal: A/B quadrature, Z phase (Conforms to EIA-422)

Minimum input phase difference: 100 ns

Quantization error: ±1 count

AlarmDisplay: Measuring unit disconnected, Excess speed, Maximum display amount exceeded, Power failure, Error in stored data

Reset: Resettable by key switch

Preset: It is possible to store/call 3 kinds of numbers.

Reference point detection: The reference point of the measuring unit can be detected

Data storage: The value displayed before the power was turned off and setting values are stored

Linear compensation: A fixed compensation is applied to the measuring unit's count value. Compensation amount Standard: ±600 um/m (Expanded: ±1000 um/m)

Program: Machining coordinates can be programmed (number of program steps: 850 max.)

  1. Manual programming by key switch
  2. Automatic programming by playback
  3. Mirror image during program execution
  4. A canned cycle (bolt hole)

Sleep: The display is turned off when no operations are made for a preset time. (The time can be set.)

Power supply: DC 12 V Rating 0.75 A Max. 1 A AC 100 V to 240 V ±10 % When using the AC adaptor PSC-22 (For U.S. only) or PSC-23 (For Europe and other countries) *Option

Power consumption: max.32 VA (connected at the AC adaptor)

Operating Temperature: 0 ~ 40°C (non condensing)

Storage temperature: -20 ~ 60°C (non condensing)

Mass: Approx. 1.5 kg
